Equipment and machinery for manufacturing carton packaging in Viet Dat

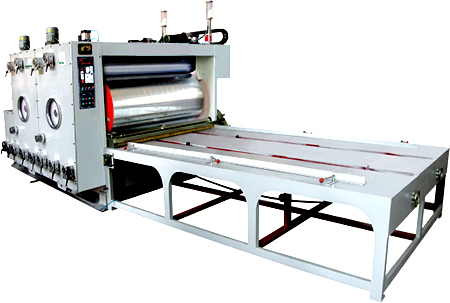

Viet Dat Co., Ltd is currently the exclusive agent in Vietnam for many large industrial corporations and trading companies in the Chinese market, specializing in supplying all kinds of machinery and equipment for carton packaging and packaging. plastic, non-woven fabric: carton corrugated production line, Flexo printing machine, round die machine, stapler machine, backing machine, carton sealing machine, slitting machine, thin film packaging machine, film laminating machine, line producing wet towels, equipment for manufacturing porous membranes and supplying all kinds of spare parts and materials such as:

- Laser plate engraving machine, polymer plate drying machine ...

- Types of cutting knives, grindstones, conveyor quilts, rubber cushions ...

In addition, our company also has a team of consultants using machinery systems, how to use machines effectively and durable, warranty, timely maintenance.

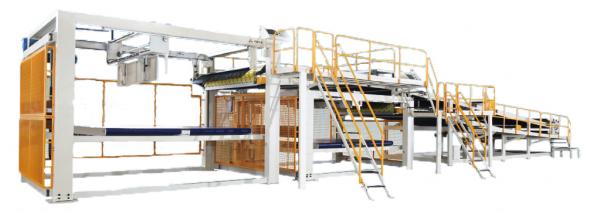

SOME EQUIPMENTS IN LINE CONTAINER PACKAGING PACKAGING CARTON:

1. HYDRAULIC HYDRAULIC PAPER LIFT

- Use hydraulic transmission to complete the operations: clamp, drop, lift, move to the left and right of the roll.

- Use the multi-point braking system, adjust the braking force by air.

- Paper clip range: 1000 mm - 2200 mm.

- Paper clip diameter: Maximum Ф1500mm, Minimum nhất350mm.

- Spindle diameter of the paper lifting rack: Ф 242mm

- Hydraulic station motor power: 3Kw - 380V - 50Hz

2. CREATE CARTON WAVE

External suction waveformer with shutter The wave block is made of high quality 48CrMo alloy steel. Lots and corrugated lots use pneumatic or hydraulic loading. Lot structure is easy to take apart, easy to repair.

3. BRAND DATA

- Bridge frame parts: including main and auxiliary frames, vertical poles and crossbars. Both sides have guard rails, handrails, floor plates, stairs.

- Suction wind force unit: controlled by inverter. Double guide shaft positioning shield. - Drive by screw, fast positioning accuracy

- Drive unit for driving and driving materials: Independent drive motor drives, synchronizes with the speed of the wave machine.

- Using paper pulley conveyor mechanism, reasonable friction rate, good air-release function.

4. MEMORY DRYING PARAMETER

- The dryer is conformable to China's national standard for pressure vessels

- The surface of the lots is carefully processed and sharpened, chrome plated, small and durable surface friction force.

- Adjust the paper hold angle by electrodynamics, the angle adjustment plot adjusts the heat resistant area of ​​the 360o rotating paper.

5. DRYING TABLES

 - The surface of the heating plate is thoroughly treated, using 18-22 600 mm heating plate (optional). The heating plate is made of pressurized steel plate, the inside of the heating plate is the structure of the insulating plate, causing the steam to rise into an S-shape, the function of separating steam and water is clear, raising the steam utilization rate.

- The upper conveyor adjusts left and right automatically, it can also be adjusted manually by 2 sides, an aerodynamic regulator of the upper belt tension system.

- Thermal conductivity of the heater is divided into sections to control the heat, showing the temperature.

- The lower conveyor uses aerodynamic tight structure, the structure is simple, practical, the lower conveyor adjusts automatically to the left and right, it can also be adjusted manually on both sides.

- The surface of the drive lot is wear-resistant, high in the middle, to ensure the paper sheet runs flat.

- Transmission gears are made of ZG-500 cast steel, gears use lubrication type immersed in oil.

- Electric components are used by famous brands in the world, these components work stably, convenient operation reliable.

- The main drive motor is a variable speed drive motor, low speed, large torque, wide speed range, reliable use, simple repair.

6 GLOSSY BANDING

- Surface of the glue lot after being treated with substance, processed inside hole, processed through dynamic equilibrium, carefully grinded the surface and engraved with grid lines, applied glue, less glue wear.

- Drive of the glue applicator is controlled by the inverter motor, the inverter ensures the speed of the glue applicator at the same speed with the drying platform, can also be independently moved.

- Adjust the amount of glue by electrodynamics, automatic glue circulation, avoid the phenomenon of sedimentation, stable adhesion.

- Using pneumatic paper pressing structure, micro gap adjustment by electrodynamics, two upper and lower floors using independent inverter motor drive.

- Measure and receive signals on the speed of double-sided drying rigs, to perform synchronous operation with the lines, use the display screen, and operate quickly and conveniently.

- The amount of glue applied is controlled automatically, the amount of glue applied according to the production speed automatically adjusts, in the automatic state, can also be adjusted manually.

7.CRAFT-CUTTING CUTTING MACHINE

- Can save 999 orders, can change orders automatically or manually without stopping the machine.

- Fast order replacement time 3-8 seconds, using 2 devices simultaneously can change orders without reducing speed.

- Automatically follow the speed of the line, ensure the same speed with the line, can connect to the production management system, large capacity.

- Non-computerized computer system with two upper and lower positions is constituted by good quality imported industrial computer and high-performance programmable controller.
